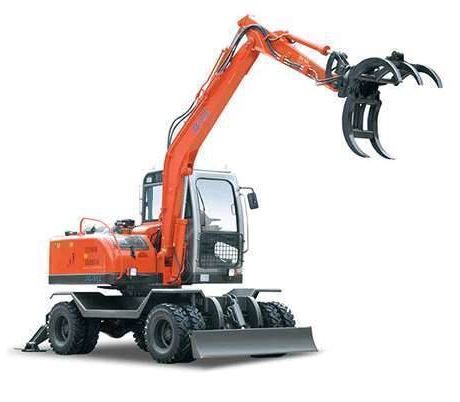

JINGGONG GRAPPLE EXCAVATOR JG-90Z
Hover over an image to enlarge
Angle of Rotation:
360 °
Arm Length:
1860 mm
Back-end radius of gyration:
1775 mm
Boom Length:
3475~3670 mm
Dumping Height:
4700 mm
Fuel Tank Capacity:
130 L
Full Circle Swinging Time:
5.5 s
Grade Climbing Ability:
58 %/30°
Grapple Swing Speed:
15 ~30r/min
Ground clearance of counter weight:
1060 mm
Hydraulic oil tank capacity:
110 L
Hydraulic system flow:
110 L/min
Hydraulic system working pressure:
19.5 Mpa
Maximum opening width:
1250~1500 mm
Metering gear pump:
2*25 ml/r
Min. Ground Clearance:
200 mm
Minimum opening Width:
200~300 mm
Rated Power:
58.8 kw
Rated Speed:
2200 r/min
Revolution Overdrive Pressure:
16 Mpa
Track (Front/Rear):
1660 mm/1580mm
Tyre Model:
825.16
Walking Speed:
36 km/h
Wheelbase:
2600 mm
